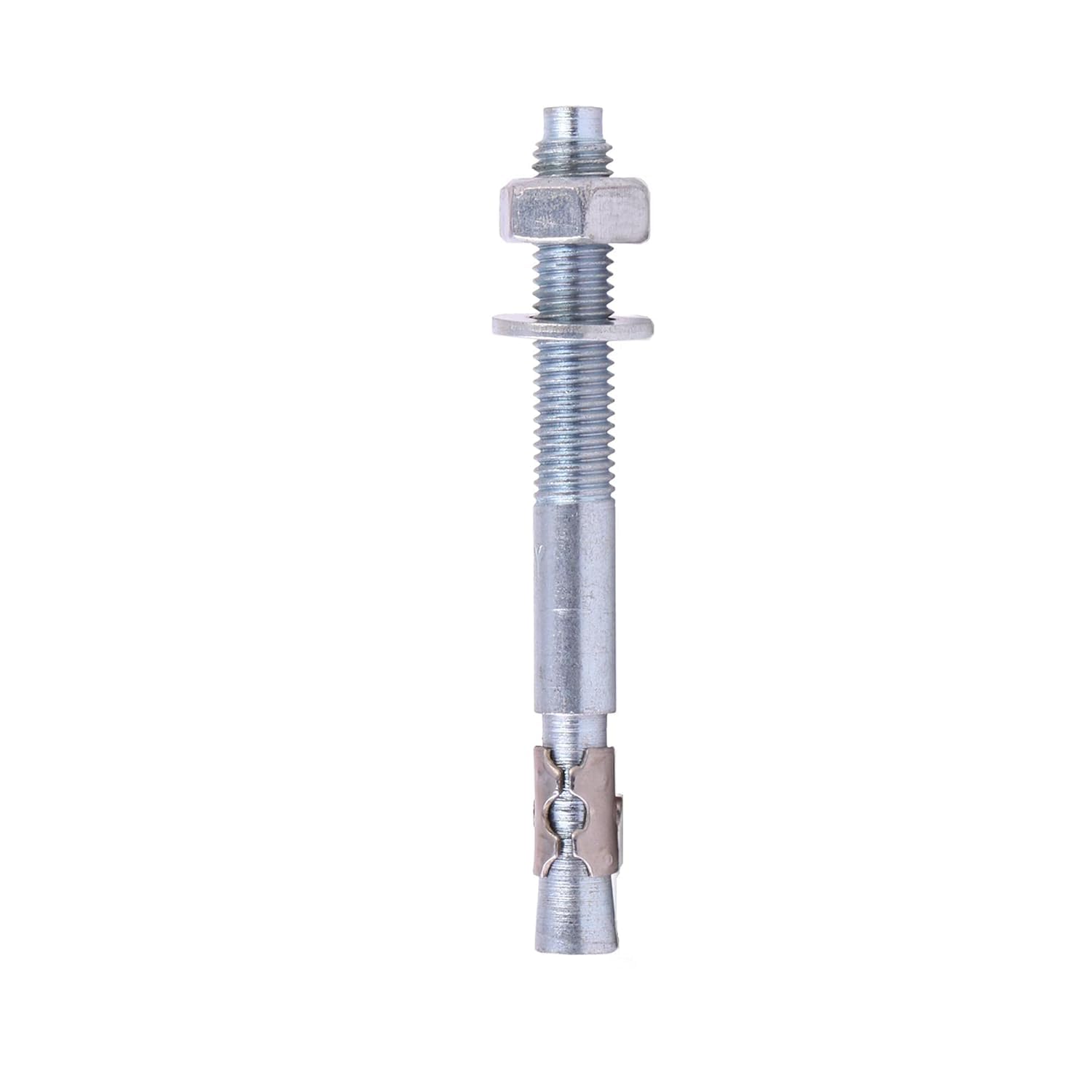

Wedge Type Fastener 8 mm X 100 mm | Fully Threaded Design Expansion Zinc Plated Anchor Bolts-In Variable | Wedge Fasteners through bar, Anchor Fasteners TB | Set of 20 Pcs.

Zinc Plated (Bolt Anchors)- Wedge Type -Fully Threaded Design -Heavy Duty Expansion Anchor Bolts-In Variable Sizes are meant for push through applications. Concrete wedge anchors' design allows them to anchor fixtures into concrete. Concrete wedge anchors work by inserting them into a hole drilled into concrete. A very simple mechanism allows excellent consistent holding values in concrete to be achieved. Once inserted into the hole in the concrete, the nut is turned clockwise. This action pulls the anchor body up, which slides the expansion clip down the cone-shaped working end of the wedge anchor. The clip is then expanded and wedges between the anchor body and the concrete Applications: Railings Profiled Steel Machines Gratings Fire Fighting Equipments Lighting Fixtures Conduit Pipes Gates Consoles Steel Constructions Air Conditioning Outdoor Unit Bracketsproduct_description

• 🔩🔩 Need to use 8 mm diameter drill bit for drilling holes, the drilling depth should be greater than or equal to 100 mm.
• 🔩🔩 Wedge Type Bolt Fastener Length 100 mm, Drill Dia 8 mm, Bolt/Screw width- 8 mm - ( Load bearing upto -50 KG - Outer diameter approx 8 mm )
• 🔩🔩 Used for: Structural Steel Mechanical equipment, concrete and masonry / grout filled cmu, any hard bricks wall / plastered wall. Pipe supports, Racks, Facades, Foundations, Concrete C20/25 and Natural stone with dense structure. Rounded end for easy insertion I Anchor diameter matches drill bit diameter.
• 🔩🔩 Drill Machine and hammer is used for installed this Wedge Type Bolt Fastener. 🔩🔩The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility. Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation
• 🔩🔩 The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility. Carbon steel, electroplated with zinc at a minimum of 5 microns
