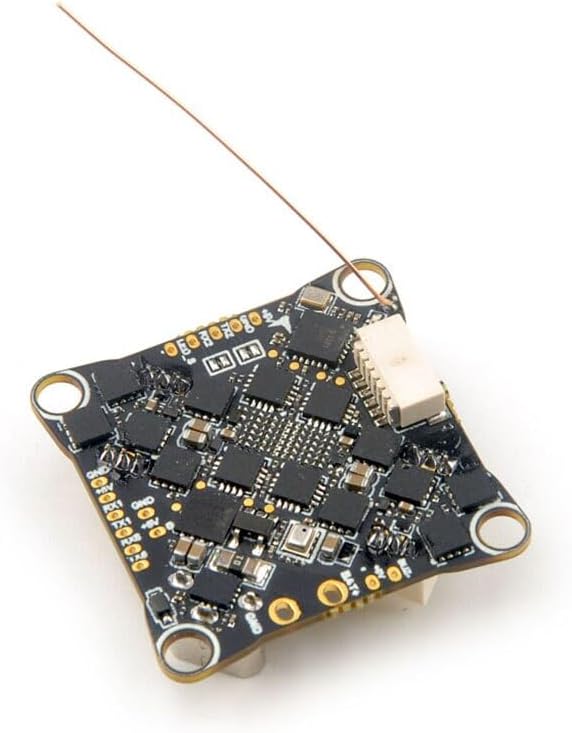

MINGCHUAN Flight Controller Built-in UART ELRS RX 12A BLHELI_S ESC ESC Speed CrazyF405HD 1-2S AIO for Digital HD Bwhoop Cinewhoop Drone
Product details
| Management number | 208628628 | Release Date | 2026/03/22 | List Price | $30.80 | Model Number | 208628628 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specifications: Item Name: CrazyF405HD ELRS 1-2S AIO Flight controller Mount size: 25.5mmx25.5mm Weight: 4.8g without power lead wire Firmware target: BetaflightF4 Support 1-2s Lipo/LiHV battery MCU:STM32F405RGT6 (168MHZ, 1MbyteFLASH) GYRO Sensor:BMI270(SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target:HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator
- A flight controller with a built-in Serial ELRS receiver and 4-IN-1 Blheli_S 12A ESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout and supports 1-2S Lipo/LiHV lithium batteries, very Suitable for Digital HD Tinywhoop/Cinewhoop/Toothpick and other small FPV drones.
- The electronic speed controller uses the F405 chip, supports Betaflight/INAV firmware, has 3 sets of complete UARTs available, and integrates a BMP280 barometerand 8Mbp blackbox, which greatly enhances the playability of the flight controller.
- Speed controller built-in 12A(each) Blheli_S 4in1 ESC. Serial ExpressLRS 2.4G. BMP280 Barometer. 8MBp blackbox. voltage meter sensor, voltage meter scale 110. current meter sensor , current meter scale 470.
- Onboard 4in1 ESC: Power supply: 1-2S LiPo/LiPo HV. Current: 12A continuous peak 15A (3 seconds). Support BLHeli_S Bluejay firmware. Factory firmware: Bluejay ESC V0.19. Firmware target: Z-H-30.
- Default protocol: DSHOT300. When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200.
| Brand | MINGCHUAN |
|---|---|
| Color | Black |
| Material | Copper |
| Model Name | CrazyF405HD ELRS 1-2S AIO FC |
| Item Weight | 1.1 pounds |
| Control Type | Remote Control |
| Manufacturer | MINGCHUAN |
| Special Feature | Built-in ExpressLRS receiver, 4-IN-1 Blheli_S 12A ESC, advanced battery support, integrated barometer and blackbox, Betaflight/INAV firmware compatibility |
| Included Components | Battery, Remote Control |
| Video Capture Format | MP4 |
| Age Range Description | Kid |
| Are Batteries Included | No |
| Connectivity Technology | ExpressLRS (2.4GHz) |
| Remote Control Included | No |
| Optical Sensor Technology | CMOS, CCD |
| Manufacturer recommended age | 15 years and up |
| Rechargeable Battery Included | Yes |
| Wireless Communication Technology | Radio Frequency |
