Condensate Trap with Built in Overflow Switch, 3/4" Standard PVC U Trap for HVAC System, Smart Drain Kit with 16'' Cleaning Brush, for Condensate Overflow Detection, Air Conditioner(2 Pack)

Condensate Trap with Built in Overflow Switch Keep your HVAC system run smoothly and efficiently! Features: The 3/4 Inch Standard Condensate Trap is an essential component for your HVAC system, ensuring reliable drainage and protecting against potential water damage. This innovative trap features a built in overflow switch that provides dual protection by detecting high water levels and preventing overflow. How It Works: The condensate trap uses a U shaped channel (gradient ) to prevent backflow into the HVAC unit. Its built in overflow switch monitors water levels and activates a signal or shuts off the system if levels get too high, preventing overflow. How to Use: Connect the Trap: attach the 3/4-inch PVC condensate trap to the condensate drain line of your HVAC system. Connect the Wire: connect the 6ft wire to either the red or yellow thermostat wires. Test the System: once installed, test the system to ensure the water flows freely through the trap and the overflow switch is functioning properly. Clean Regularly: use the included 16-inch cleaning brush to maintain the trap and remove any debris that may accumulate inside. Specifications: Product: 3/4 Inch Standard Condensate Trap Kit Color: as Show Material: PVC Quantity: 2 Set Brush Size: 16 inch Wire Length: 6ft Theme: HVAC Maintenance Package includes: 2 X 3/4'' Standard Condensate Trap 2 x Built in Overflow Switch with 6ft wire 2 X 16 inch Flexible Cleaning Brush Notes: Manual measurement, please allow slight errors on size. The color may exist a slight difference due to different screen displays. Regularly maintaining a clean condensate trap helps keep your HVAC system running efficiently and prevents potential issues.

• Built in Overflow Switch for Dual Protection: the condensate trap, equipped with an integrated overflow float switch, automatically detects high water levels and prevents overflow, ensuring safe and efficient operation of your HVAC system, and helping protect your system from potential water damage or malfunction
• Precision for Efficient Water Flow: the U trap, also called gradient, is engineered for optimal water flow and effective condensate drainage, and the 3/4 inch standard size ensures it works seamlessly with most air condition systems, efficiently managing condensate water without obstruction or backup
• Quality PVC Material for Durability: crafted from quality PVC, this trap is built to withstand the demands of everyday use in HVAC systems, providing a long-lasting durability, corrosion resistance, and ability to handle high water flow without cracking or breaking (PVC cement and purple primer can be purchased separately for sealing)

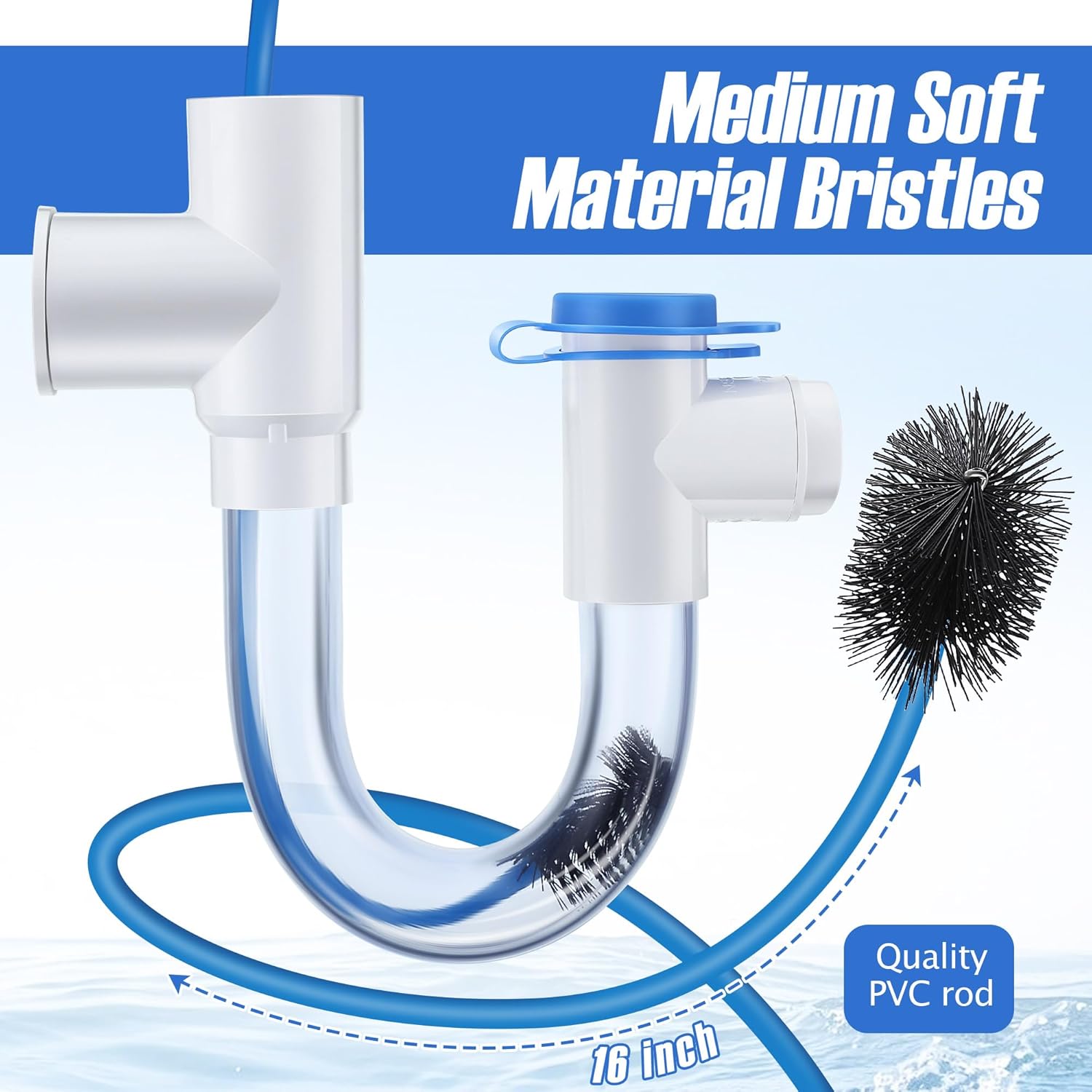

• Condensate Overflow Detection Must Haves: the smart trap kit includes two 3/4 Inch standard condensate trap, two built-in shutoff overflow switch with 6ft wire, and two 16 inch flexible cleaning brush, offering all the components needed to maintain your HVAC system's integrity and prevent overflow issues
• Easy Installation and Maintenance: attach the 3/4 inch condensate trap to the condensate drain line of your HVAC system, and connect the 6ft wire to either the red or yellow thermostat wires, then test the system to ensure the overflow switch is functioning properly; Included 16'' flexible brush makes it simple to maintain and clean
