8330-752 Air Conditioner Control Box Assembly, Cool Only Control for Coleman Mach Non-Ducted Ceiling Configurations with Wall Thermostat
Product details
| Management number | 208218718 | Release Date | 2026/03/22 | List Price | $18.00 | Model Number | 208218718 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Replaces Part Numbers – 7330D3211, 7330B5551, 7330C5551, 7330A751, 7330B751, 8330-752, 8330-5551, 8330-3851. Applicable to Ceiling Assemblies / Plenums w/ Product ID - Flush Mount Ceiling Plenum 7330B750, 7330C750, 7330751 (7330-751), 7330A751, 7330B751, 7330752 (7330-752); Flush Mount Ceiling Assembly 8330633 (8330-633), 83306332 (8330-6332), 8330731 (8330-731), 8330733 (8330-733), 83307332 (8330-7332), 8330A731, 8330A733, 8330A7333; Chill Grille 8330B623, 8330B6332; Chill Grille 2 8430633 (8430-633), 8430634 (8430-634), 8430A633, 8430A6332, 8430A634.
- Wide Application – Our 8330-752 Control Box Kit (12 VDC Cool Only) designed for non-ducted air conditioner systems with a wall thermostat. It can convert a unit with 2 dials to run off a normal thermostat, and allows you to hook it up to a standard thermostat.

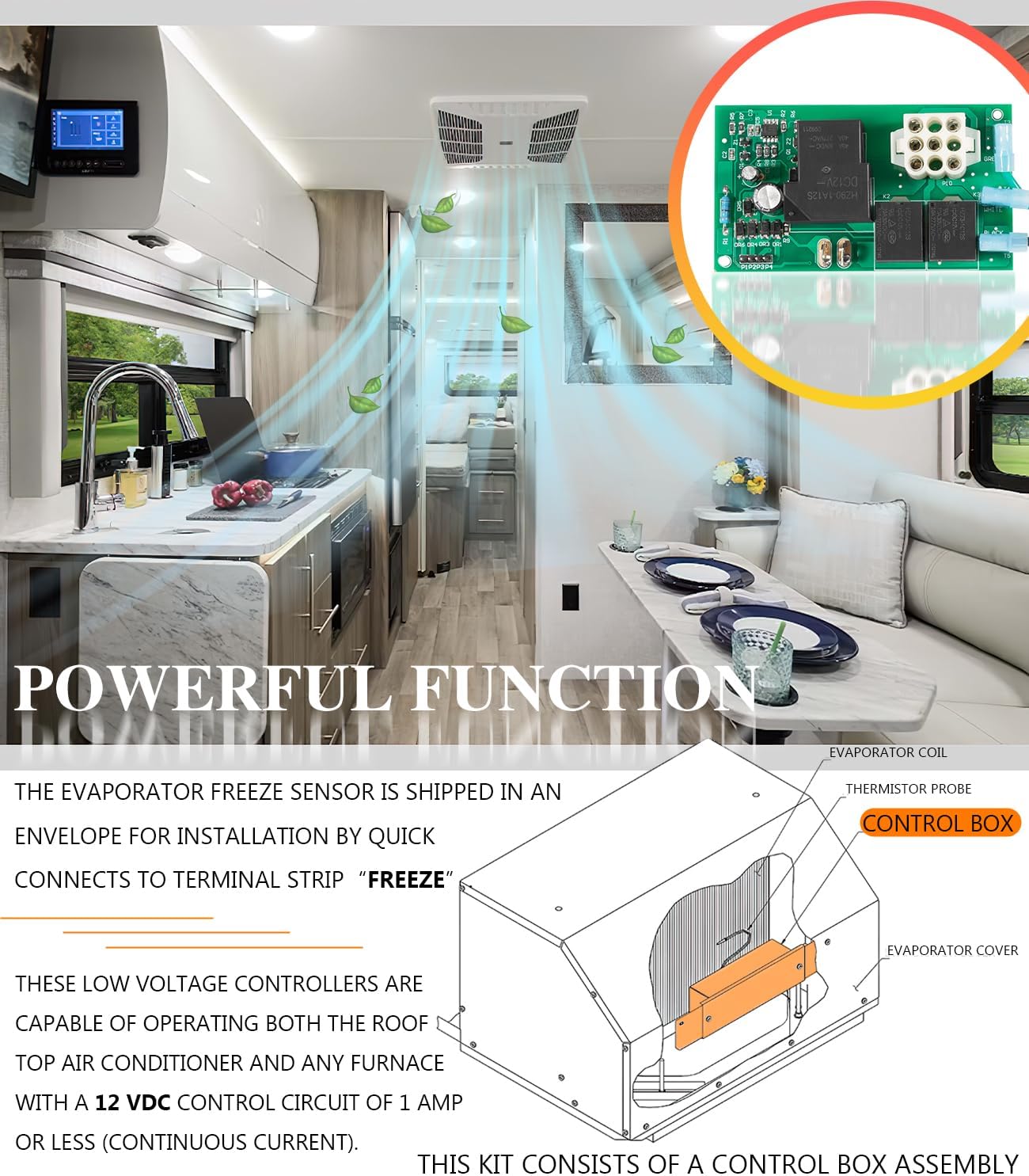

- Powerful Function – This kit consists of a control box assembly. The evaporator freeze sensor is shipped in an envelope for installation by quick connects to terminal strip “Freeze”. These low voltage controllers are capable of operating both the roof top air conditioner and any furnace with a 12 VDC control circuit of 1 amp or less (continuous current).
- Five Wires Are Required For Cool Boxes – These wires are as follows: (1) Blue wire for -12 VDC circuit, (1) Yellow wire for compressor circuit, (1) Green wire for high fan circuit, (1) Gray wire for low fan circuit, (1) White wire for heat circuit
- Replaces Part Numbers – 7330D3211, 7330B5551, 7330C5551, 7330A751, 7330B751, 8330-752, 8330-5551, 8330-3851.
- Applicable to Ceiling Assemblies / Plenums w/ Product ID - Flush Mount Ceiling Plenum 7330B750, 7330C750, 7330751 (7330-751), 7330A751, 7330B751, 7330752 (7330-752); Flush Mount Ceiling Assembly 8330633 (8330-633), 83306332 (8330-6332), 8330731 (8330-731), 8330733 (8330-733), 83307332 (8330-7332), 8330A731, 8330A733, 8330A7333; Chill Grille 8330B623, 8330B6332; Chill Grille 2 8430633 (8430-633), 8430634 (8430-634), 8430A633, 8430A6332, 8430A634.
- Package Include – 2 spring nuts for mounting the box, 4 wire nuts for the thermostat wires, 3 wire nuts for the 110VAC wires, Cable Clamp, Freeze Sensor, Thermostat cable assembly that plugs into control box and wires to the thermostat wires.
| Color | white |
|---|---|
| Item Weight | 13.7 ounces |
| Part Number | 8330-752 |
| Manufacturer | besttruck |
| Batteries Included | No |
| Batteries Required | No |

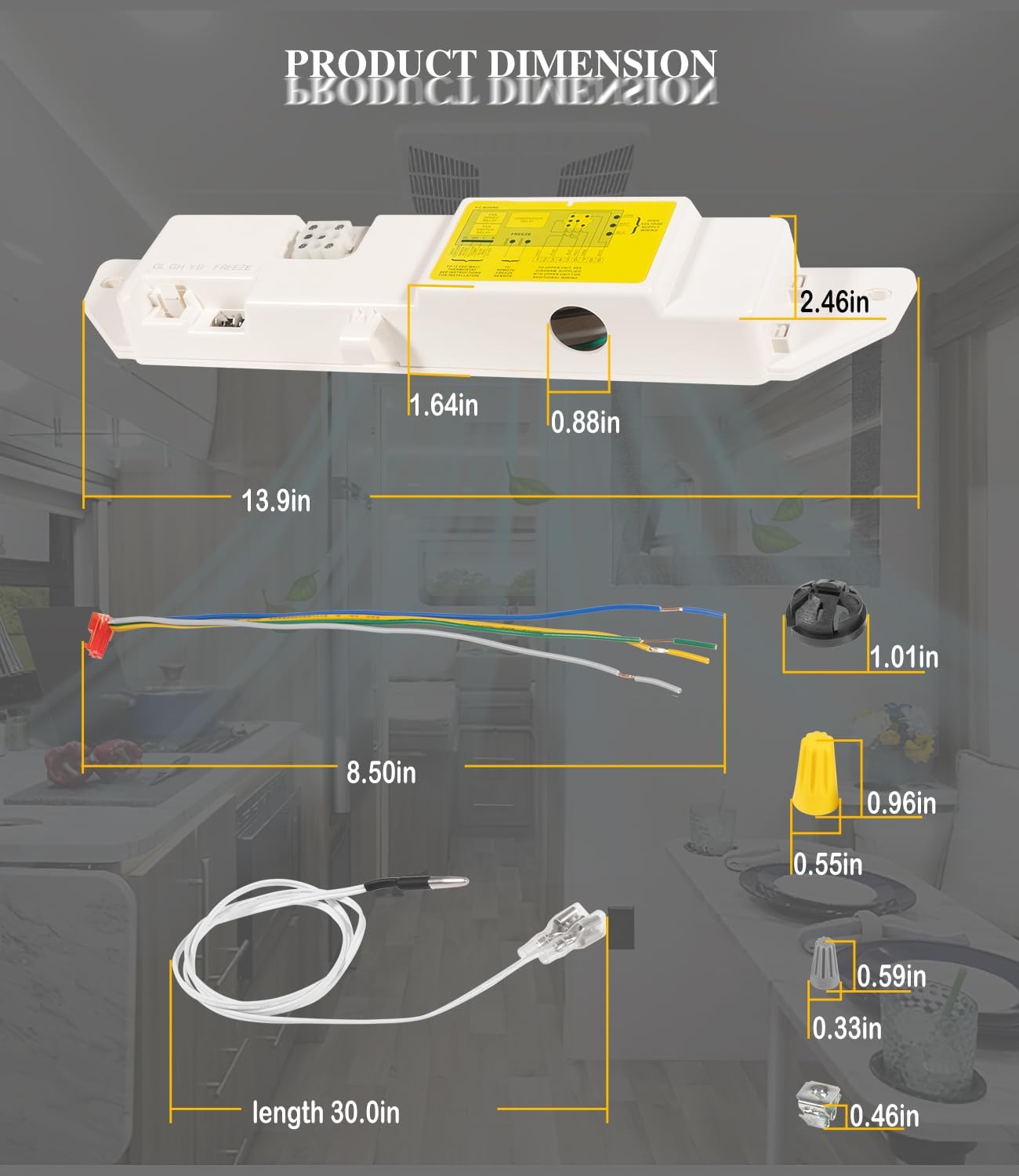

| Product Dimensions | 15 x 3.5 x 2.3 inches |
| Included Components | Air Conditioner Control Box Assembly |
| Warranty Description | 1 year warranty |
